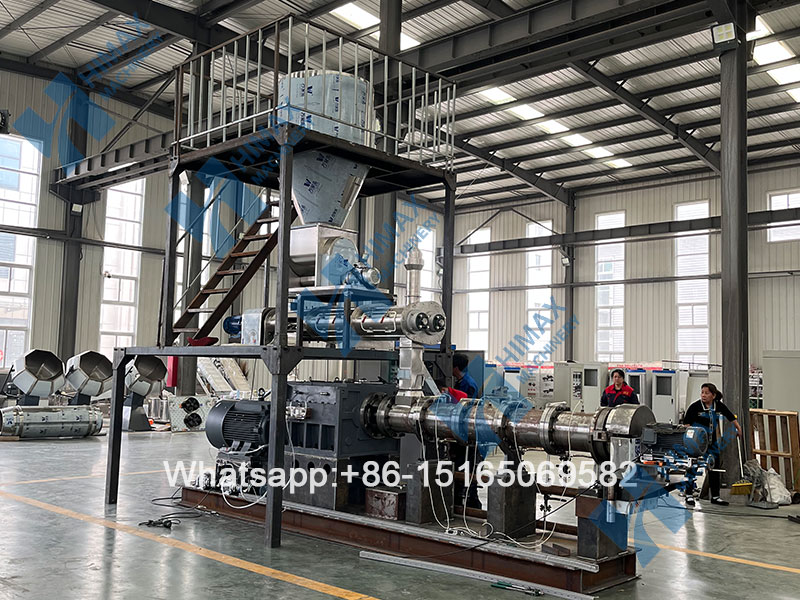

China Twin Screw Automatic Floating Fish Feed Pellet Making Extruder Machine Production Line
Pellet size : 1mm~10mm
Application : Dog,cat,fish,tilapia, shrimps, gold-fish, tropical fish,etc
Advantages: Energy saving and environmental protection, fully automatic high output
Description:
Twin Screw Automatic Floating Fish Feed pellet making extruder machine production line is deliberately made for special feed, which needs high in-shape rate and good-looking appearance. fish feed pellet processing plant is mainly used for sinking/floating/slow sinking fish feed. Effectively protect the aquaculture water body from pollution to improve the quality of life.
Technical parameter:
Model | Installed Power | Output | Size |
HM65 | 60KW | 150-180KG/H | 28000*1200*2200mm |
HM70 | 90KW | 200-260KG/H | 32000*1500*2200mm |
HM85 | 100KW | 300-400KG/H | 35000*1500*3500mm |
| HM90 | 96KW | 800-1000KG/H | 30000*3500*2300mm |
HM95 | 180KW | 800-1000KG/H | 45000*2500*3500mm |
Flow chart:
Twin-screw extruder→Air conveyor→Dryer→Hoister→Flavoring machine→Hoister→Cooler
Process flow of fish feed production line:
Raw material crushing → raw material (corn flour, soybean meal powder, starch, fish meal, etc.) preparation → mixer → conveyor → twin screw feed puffing machine → transportation → drying equipment (electric oven, gas oil oven or steam oven) → oil injection → double barrel seasoning system → cooling conveyor → screening → silo → packaging machine
